Vendor Interface

Building an interface to another Vendor's software is done in two parts

Part 1 is PBClinic and Part 2 Mirth Connect

PBClinic starts the process by adding a record to the to the VendorInterfaceQueue table whenver either of the two conditions below occur

1) A modification to the patient demographic record occurs (add, modification)

2) A modification to the patient insured information record occurs (add, modification)

Part 2 utilizes Mirth Connect

Mirth Connect runs a process which continually monitors the VendorInterfaceQueue table for active records (new or modified)

Mirth Connect uses Postgres SQL server to access the VendorInterfaceQueue table

Mirth Connect then creates HL7 records and exports them into a specific directory and file which are later consumed by

the vendor software to utilize in the vendor software tables etc.

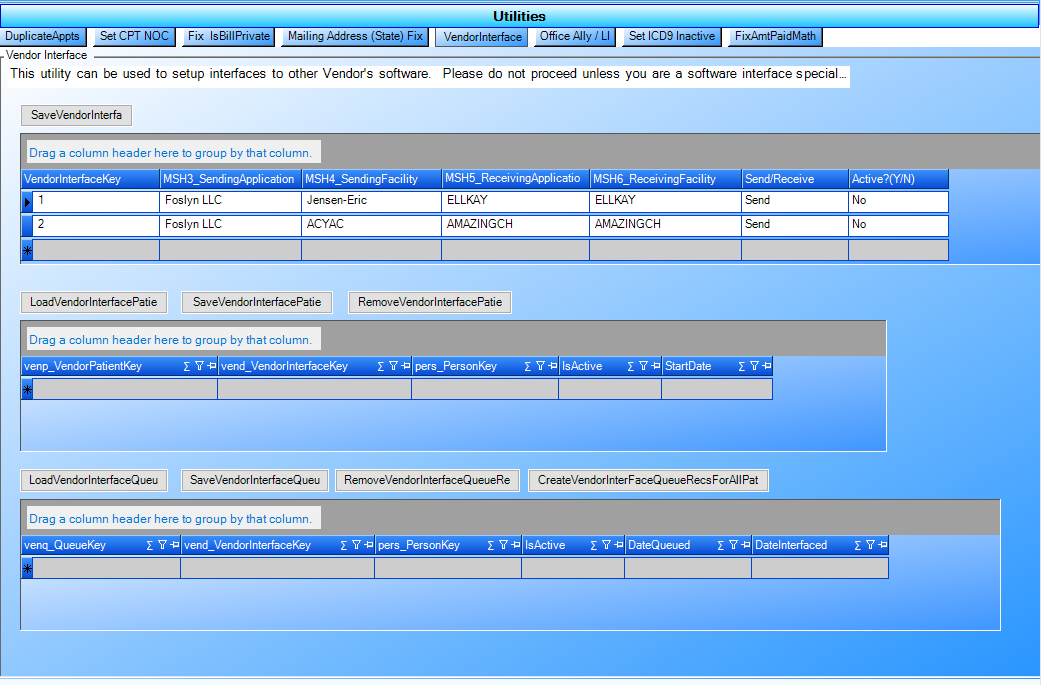

Part 1 - Setup Vendor Interface Table

Part 2 - Using Mirth Connect

What is Mirth Connect

Mirth Connect is a cross-platform interface engine used in the healthcare industry that enables the management of information

using bi-directional sending of many types of messages.

Mirth Connect uses JavaScript as it primary underpinning language along with other propritary internal functions.

The deails of how to use Mirth Connect are beyond the scope of this document.
